Fraunhofer IPMS presented novel MEMS bending actuators at Photonics West 2017

A new class of electrostatic micro actuators developed at the Fraunhofer Institute for Photonic Microsystems (IPMS) enables large vertical or lateral deflections with little energy consumption and low electrical drive voltage. This technology can be used to extend existing microsystem solutions as well as develop new application areas with novel designs. At Photonics West 2017, Fraunhofer IPMS presented the new class of electrostatic bending actuators.

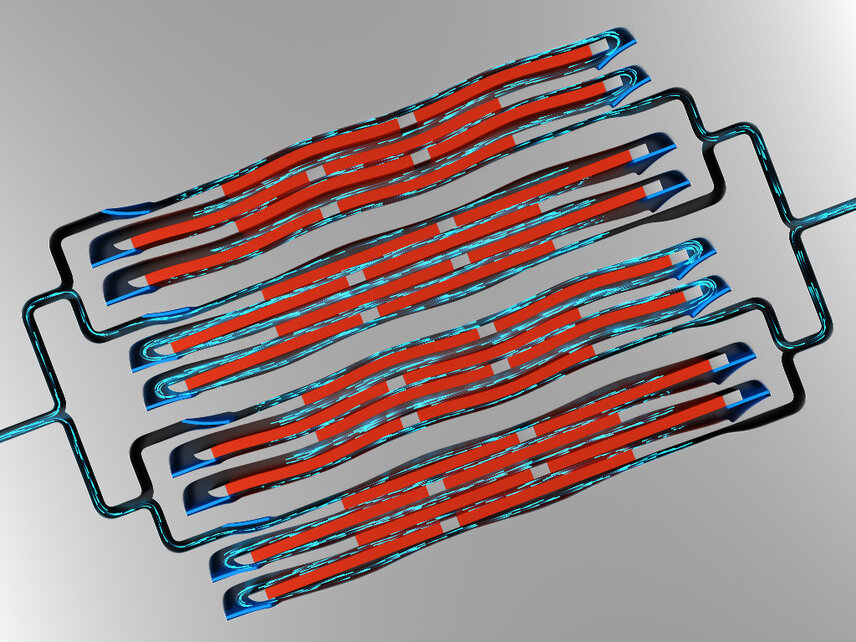

Electrostatic micro actuators can be found in smartphones, wearables, cars, implantable insulin pumps or in pico-projectors. Today, highly-miniaturized electromechanical systems with actively movable components (MEMS) provide the technological basis of countless applications in optics, communication and biotechnology as well as measurement and medical technology. Electrostatic fields are frequently used to drive the actuators. The nanoscopic electrostatic drive (NED) actuators developed at Fraunhofer IPMS reduce the electrode spacing needed to generate electrostatic forces to a few hundred nanometers and still achieve large deflection movements of more than 100 micrometers. "Large deflections are normally only possible with larger electrode distances and, therefore, with very high drive voltages," explains Prof. Harald Schenk, Director of the Fraunhofer IPMS and Head of the research team. "In NED actuators, however, electrostatic forces are diverted into lateral forces. These transformed lateral forces produce a quasi-static deflection within a bending beam, which can be substantially larger than the electrode spacing. As a result, our actuators provide higher performance while using much less energy."

The range of possible applications for NED actuators seems to be unlimited: the team of IPMS is currently working on designs for positioning drives for miniaturized optical zoom lens systems, micropumps, microvalves and tiny loudspeakers for hearables and hearing aids. In the process, this technology could prove its potential for volume production. NED actuators are manufactured using conventional MEMS manufacturing methods for surface- and bulk-micromachining and can be easily integrated into semiconductor components and CMOS circuits.

Contact: Dr. Michael Scholles, Fraunhofer-Institut für Photonische Mikrosysteme IPMS
